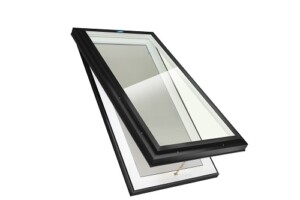

Curb Mounted Skylights

Curb Mounted skylights are the preferred skylight mount for any type of roof

Primarily for use on tile, shingle or wood shakes. Recommended by roofing professionals as the optimum choice for long lasting, trouble free installation. This type of skylight can be installed on all types of site built curbs, whether pre-existing or new.

Berdick and Columbia partner to offer the industry’s most complete selection of curb mounted skylights which are available in a wide range of fixed and venting (manual or electric) models.

All Units Feature:

  • Designed to work on any type of roof
  • Ideal for low pitch or flat roof applications
  • Durable full perimeter gasket ensures weathertight fit
  • Glass units are designed for use with a minimum 2:12 pitch
  • Attractive low profile domes
  • Optional prefabricated flashing kit available

  • Large capacity four sided condensation channel with weep holes in all four corners
  • Fixed units can be inside or outside fastened
  • Available in glass, pyramid or acrylic dome glazing
  • Drywall return for clean finish of interior wall materials
  • ENERGY STAR® rated with triple pane u-values as low as 0.31

Aluminum Curb Mount

Ideal for applications in industrial or larger residential settings. Minimal frame expansion and contraction. Durable all aluminum, thermally broken frame utilized on large skylights up to 8′ x 8′. Fits on 2″ wide curb.

  • Heliarc welded frame and mitred corners
  • Finest quality non-compressible butyl tapes and neoprene gaskets
  • Double, or triple glazed in acrylic, polycarbonate, or glass
  • Low profile domes
  • Inside or outside fastened

  • Large capacity four sided condensation channel with weep holes in all four corners
  • Frames fastened with stainless steel screws
  • All frames have durable baked enamel paint finish in rideau brown or white
  • Custom exterior frame colors are available
  • Thermally broken aluminum frame construction
